Mitutoyo 176-821-11A Toolmakers’ Microscopes
Product Code: 176-821-11AMFGID: 176-821-11A
Brand: Mitutoyo
Request Quote
Product Description

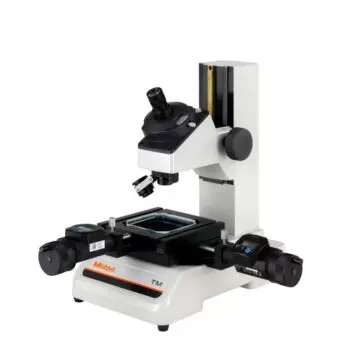

176-821-11A Mitutoyo Toolmakers’ Microscope: 100x500mm
The Mitutoyo 176-821-11AÂ Toolmakers’ Microscope has the following specifications:
- Optical Tube: Monocular type (Depression angle: 60°)
- Observation Image: Erect
- Eyepiece Protractor: Resolution (graduation): 1°, Rotation angle: 360°, Minimum reading by Vernier: 0.5°, Adjustable zero point
- Eyepiece: Standard accessory: 15X (field number: 13), Options: 10X, 20X
- Objective Lens: Standard accessory: 2X, Options: 5X, 10X
- Microscope Head Maximum Height of Workpiece: 107mm
- Microscope Head Focusing Method: Manual (Coarse feed)
- Illumination Unit Transmitted Illumination: Stepless brightness adjustment, White LED light source, With green filter
- Illumination Unit Surface Illumination: Oblique single-source type, Stepless brightness adjustment, White LED light source
- Cross Travel Stage Measuring Range: 100×50mm (An optional 50 mm gauge block* is required to cover full range. A CERA block is recommended.)
- Cross Travel Stage Table Size: 240x152mm
- Cross Travel Stage Usable Area of the Stage Glass: 154x96mm
- Cross Travel Stage Maximum Stage Glass Loading: 5kg
- Linear Measurement Method: Micrometer Head*
- Resolution of 176-821-11A: Depends on the micrometer head specifications* (for MHD-2″MB (164-164): Resolution 0 .00005″/0.001mm)
- Micrometer Head Travel Range: (for MHD-2″MB (164-164): 2″/50.8mm)
- Power Source for: 100 to 240 VAC 50/60 Hz Maximum power consumption: 4.2 W
- Main Unit Mass: 15kg
- Main Unit with TM-A Series 164-164 Mic Heads Included
- Model Number: TM-1005B
- Micrometer Heads and gage blocks (CERA blocks) are optional
Features of 176-821-11A:
- Newly designed LED illuminators provide clear observation with outstanding color reproduction.
- Installation of optional Digimatic micrometer heads (164-164) enables easy digital measurement.
- A vernier scale mounted outside the eyepiece enables simple angle measurement.
- Optional LED circular illuminator 176-206 available for applications requiring all-round lighting.Â
If this Mitutoyo Microscope page does not have the specifications or information you are searching please visit the Mitutoyo company website. You can find their website by Clicking Here.
Mitutoyo Toolmakers Microscopes TM SeriesÂ
- 176-818-11A Toolmakers’ Microscope: 50x50mm
- 176-819-11A Toolmakers’ Microscope: 100x50mm
- 172-820-11A Toolmakers’ Microscope: 50x50mm (Main Unit with TM-A Series 164-164 Mic Heads Inc.)
- 172-821-11A Toolmakers’ Microscope: 100x50mm (Main Unit with TM-A Series 164-164 Mic Heads Inc.)
Request Quote
