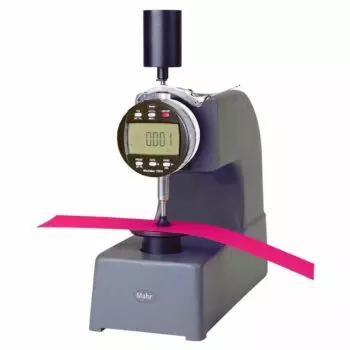

Mahr 2050984 MaraMeter Portable Thickness Gage: 0-1″
Product Code: 2050984MFGID: 2050984
Brand: MAHR
Product Description
2050984 Mahr MaraMeter Portable Thickness Gage: 0-1″
The Mahr 2050984 MaraMeter Portable Thickness Gage has the following specifications:
- Measuring Range: 0-1″
- Throat Depth: 4″
- Graduation Value: 0.01″
- Parallelism Deviation: 3m
- Measuring Force – N: 2.8N
- Indicating Instrument: IDS- 341 Indicator (D8IS)
Features:
- Solid casting with ribbed frame provides strength and rigidity for accurate measurements.
- 0.003 mm / .0001″ parallelism with tables up to 19 mm / .75″ diameter.
- 283 g / 10 oz. dead load weight for constant gaging pressure.
- 10 mm / .407″ diameter flat upper 54.0 mm / 2.125″ lower contacts.
- Indicator mounts with adjustable back for quick positioning for each gaging requirement.
- Gage is supplied with a lift lever so work can be easily placed between the table and contact.
- Four-inch throat depth for part clearance.
- Data interface: none.
- Scope of delivery: Includes Indicator.
Application:
- Precision Thickness Measurement requiring dead weight load force.
Mahr MaraMeter Portable Thickness Gages – 57B-14 / 57B-15: Inch
- 2050982 MaraMeter Portable Thickness Gage: 0-.10″
- 2050984 MaraMeter Portable Thickness Gage: 0-1″
Mahr MaraMeter Portable Thickness Gages – 57B-14M / 57B-15M: Metric
