  • Product Code: #184-308S

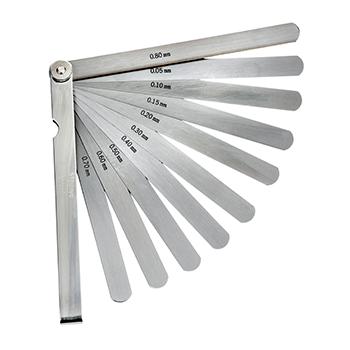

    Thickness Gage # 184-308S

    Range/Size: 0.05-0.8mm

    Price: $48.95 $42.10
    Lowest Price Guaranteed
    Quantity

    Product Description

    184-308S Mitutoyo Thickness Gage: 0.05-0.8mm

    The Mitutoyo 184-308S Thickness Gage has the following technical specifications:

    • Range: 0.05-0.8mm
    • Type of Blade: Straight 13mm width
    • Blade Length: 150mm
    • Composition of Leaves: 10 leaves: 0.05 - 0.2mm by 0.05mm, 0.3 - 0.8mm by 0.1mm

    Technical Data - Accuracy of Leaves Thickness - Nominal Thickness & Tolerance - Metric:

    • 0.01mm to less than 0.06mm: +/- 0.003mm
    • 0.06mm to less than 0.10mm: +/- 0.004mm
    • 0.10mm to less than 0.35mm: +/- 0.005mm
    • 0.35mm to less than 0.65mm: +/- 0.008mm
    • 0.65mm to less than 3.0mm: +/- 0.01mm

    Technical Data - Accuracy of Leaves Thickness - Nominal Thickness & Tolerance - Inch:

    • .0015 to less than .007": +/- 0.0002"
    • .07 to less than .015": +/- 0.0003"
    • .015 to less than .025": +/- 0.0004"
    • .026 to less than .030": +/- 0.00045"
    • .031 to less than .040": +/- 0.0005"
    • .041 to less than .0075": +/- 0.00055"
    • .076 to less than .100": +/- 0.0006"
    • .101 to less than .200": +/- 0.00065"
    • .200" and over: +/- 0.00075"

    Features:

    • Each leaf is marked with its thickness
    • Each leaf is detachable if necessary

    Mitutoyo Thickness Gages - Metric

    Mitutoyo Thickness Gages - Inch

    • 950-251 Thickness Gage: .002"-.035" (26 leaves)
    • 950-252 Thickness Gage: .0015"-.025" (26 leaves)
    • 950-254 Thickness Gage: .0015"-.200" (15 leaves)
    • 950-255 Thickness Gage: .0015"-.200" (13 leaves)
    • 950-256 Thickness Gage: .0015"-.015" (8 leaves)
  •
